DC-DC Power Supplies

Our DC-DC power supplies are high performance power supplies for use in all racks for datacom and telecom systems, medical equipment, and control systems. available as open frame as well.

The DC power supply meets all of the requirements of the telecommunication specification plus N+1 current sharing and hot swap.

Input and output connections are through the backplane and the front panel optionally according to the customer requirements.

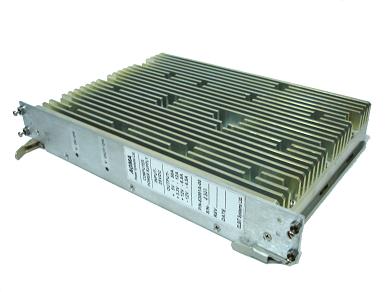

DC-DC

MAIN FEATURES:

  • Full redundancy - "Hot swap".
  • N+1 current sharing.
  • Active current sharing.
  • Multiple outputs.
  • Output voltage range - 1.2v - up.
  • Output power range - Up to 120A (Each output).
  • High power density.
  • Emi/Rfi requirements.
  • CE, UL ,CSA ,VDE/TUV certifications.
  • MTBF - higher then 100000 hours.
  • Full protection for: over load, over voltage, over temp, reversed polarity.
  • Wide input voltage range 36-72Vdc and wider.

TYPICAL APPLICATION:

  • Telecommunication systems.
  • Data communication network
  • Cable TV systems
  • Wireless Local Loop Systems
Power Supply for Eyal Millimetrix

"OFF THE SHELF" PRODUCTS DATA SHEETS:

PSLINK30-3-5 (PDF) For Eyal Millimetrix unilink

  • A 30watts Power supply - ideal for RF links!
  • (-)48V input
  • 3.3V, 5V and proteted -48V outputs for outdoor unit.
  • open frame and 1U configuration.
